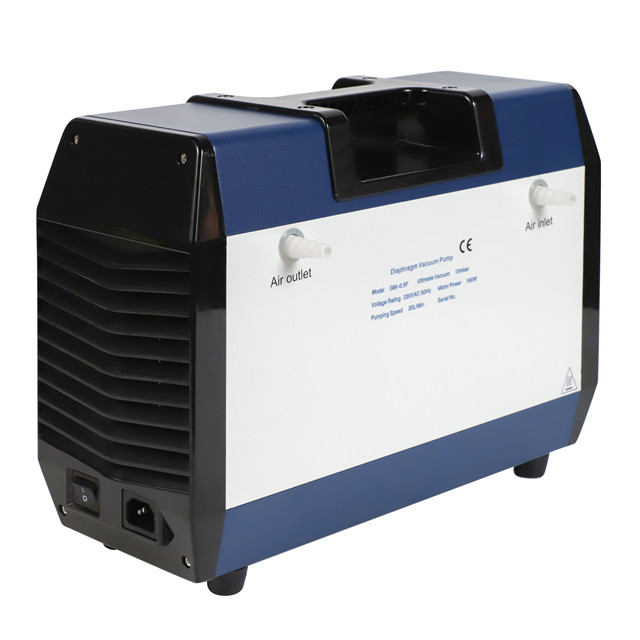

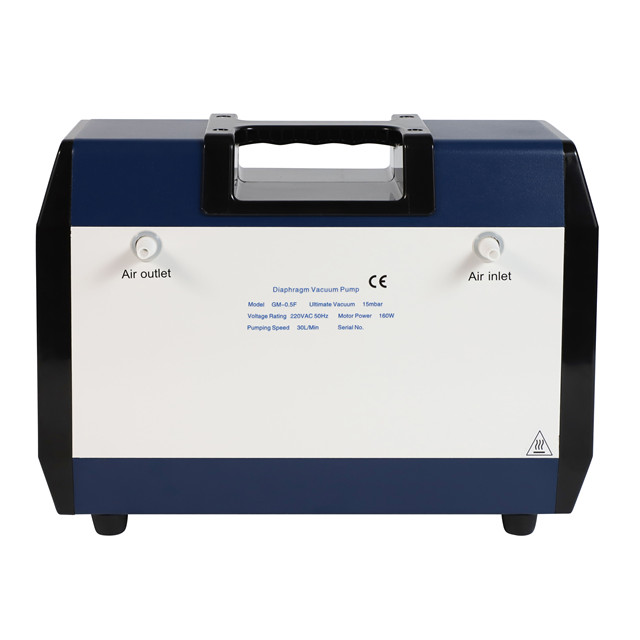

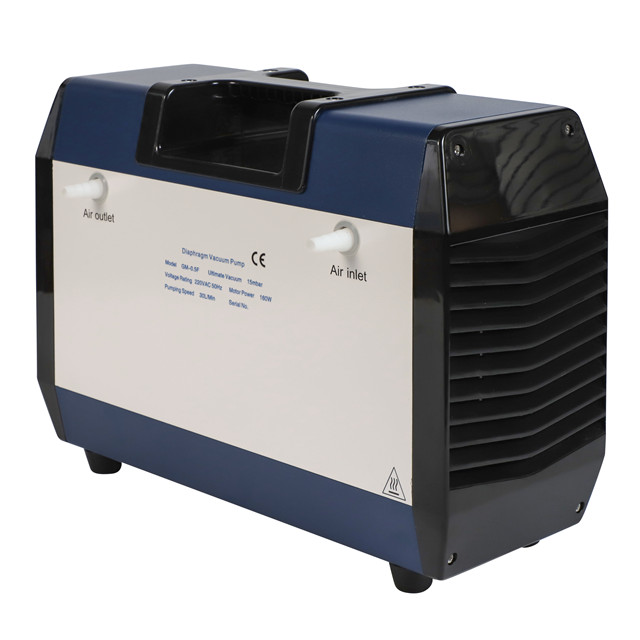

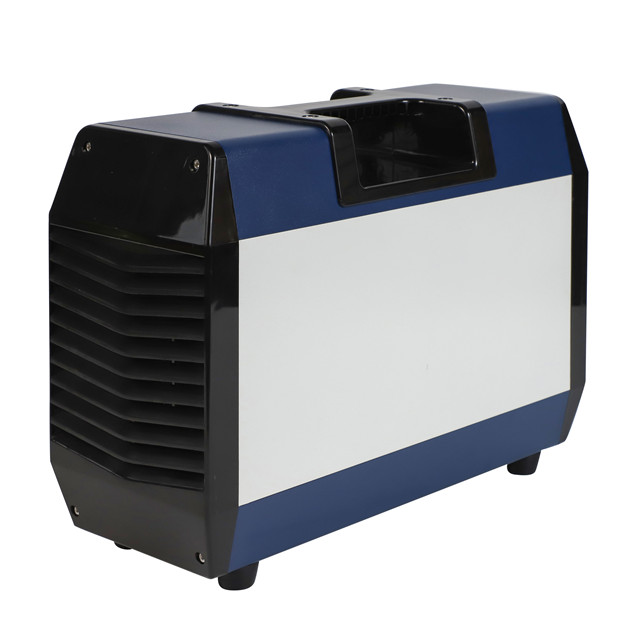

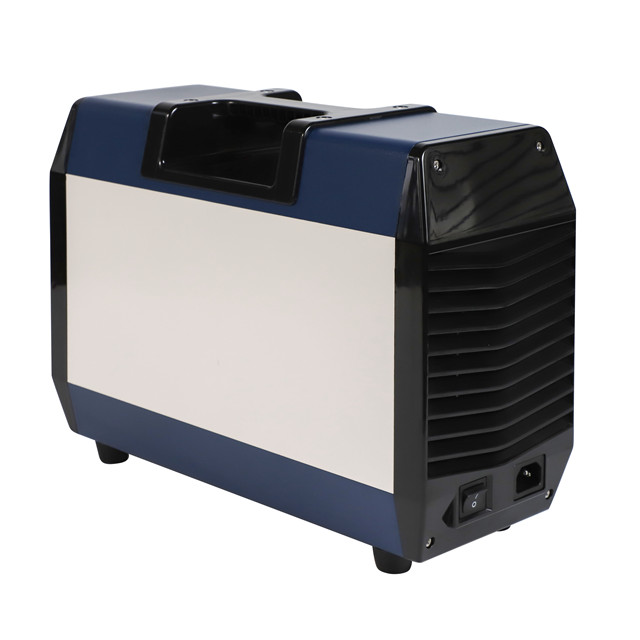

PTFE Coated Diaphragm Vacuum Pump

  • GM-0.5F


Diaphragm Vacuum Pump(GM-0.5F)

Jinteng series Diaphragm Vacuum Pump has the features of continuous oil free pumping, low noise level, higher efficiency, long lifetime. It is mainly used in medicinal products analysis, industry of fine chemicals, biochemical pharmacy, food examination,the criminal investigation technology, etc. It is used with the precision chromatography instrument, the necessary of laboratory. This product is specially designed for laboratory, reliable and easy to use. These series of products have obtained the national patent.


• Speed of evacuation : 30L/Min

• Extreme pressure vacuum : ≥ 0.098MPa (20mbar)

• Voltage : 110V/220V/230V/240V

• Motor power: 160w

• Inlet: φ 6mm

• Outlet: φ 6mm

• Temperature of working environment ( ℃ ) : 7 - 40

• Function : Vacuum & Pressure

• Pump head : double

• Temp of the body (℃ ) : <55

• Dimensions ( L×W×H )( mm ): 370 × 144 × 275

• Noiselevel( DB) : ≤ 60

• Weight: 13.5Kg

• Diaphragm : PTFE Coated



• Air chamber and air road using PTFE(also called TEFLON) material. This model has strong resistance to chemical corrosion resistance and organic solvent properties.PTFE is also known to be high chemically resistant and.

• The valve sheet uses FFPM rubber material, which is characterized by good toughness and resistance to chemical erosion.

• Adopt imported classic bearing, smooth operation, low noise, high efficiency.

• The products use automatic cooling exhaust system is designed in the body, ensures continuous operation 24 hours a day.

• The high precision vacuum pump improved the efficiency of the laboratory.

• The appearance of the atmosphere and advanced structure obtained two patents of China.


Vacuum adsorption

Solvent filtration

Vacuum distillation

Vacuum drying

Compressing and converting gas

SPE (Solid phase extraction)



Packing: The pump is packed with foam inside and carton outside,to protect the pump safely.

Delivery Method: by FEDEX/TNT/UPS/DHL, by railway, by sea or by truck.

Delivery Time: Generally 7-15working days,also according to the order quantity.

Tianjin Jinteng Experiment Equipment Co.,ltd. is renowned as an experienced manufacture of Vacuum Pumps and Filtration Apparatus since 1993.
